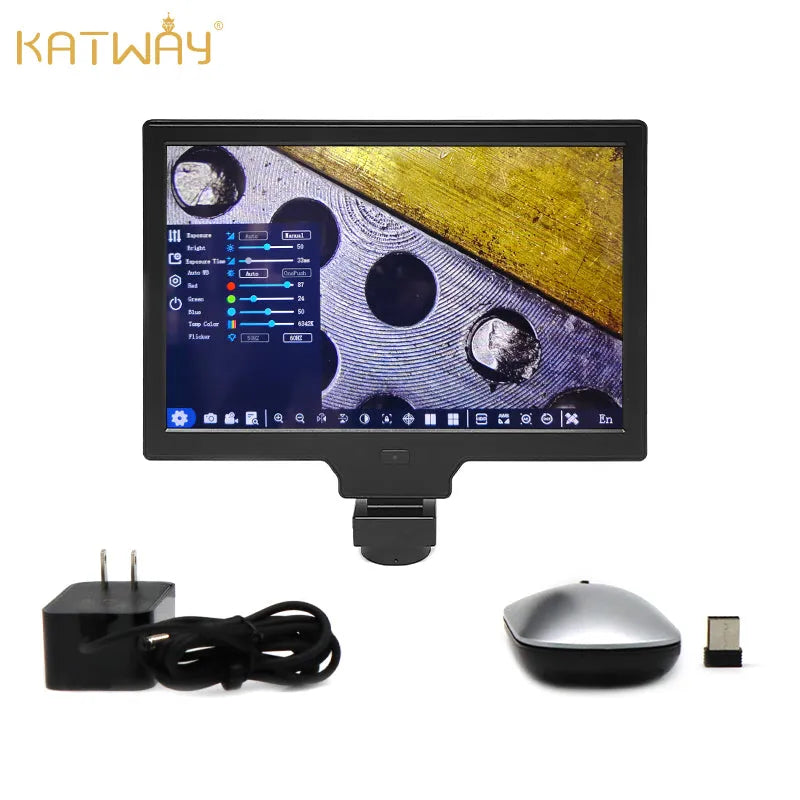

10.1Inch Industrial Microscope Display with Imx307 Sensor, HH-MC01
If you need to purchase more than 80 pieces please contact us
- Regular price
-
$320.00 - Regular price
-
- Sale price
-
$320.00
Couldn't load pickup availability
Specifications
Item Name:Microscope display
Screen:10.1 Inch
SENSOR:IMX307
Sensor Dimensions:1/2.8 inch
Pixel Dimensions:2.9*2.9μm
Output Resolution:1920*1080
Frame Rate:1920*1080@ 60FPS

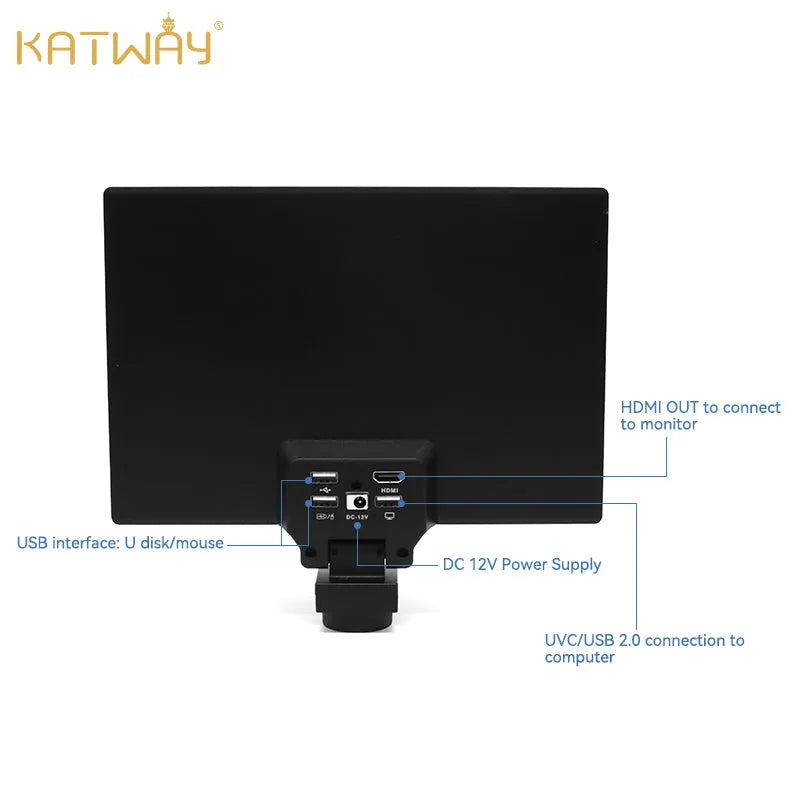

Image Storage Methods:USB flash drive or UVC to PC
Videotape:1920*1080@30FPS
Exposure time:0-999MS
Exposure:Automatic and manual, providing target brightness settings
White Balance:Automatic and manual and ROI modes
Parameter Setting:Contrast, saturation, brightness, sharpness, noise reduction, etc.
System Software:Youngwin OS
PC Software:S-EYE2.0
Operating Temperature:0-60℃
Storage Temperatures:-20-85℃

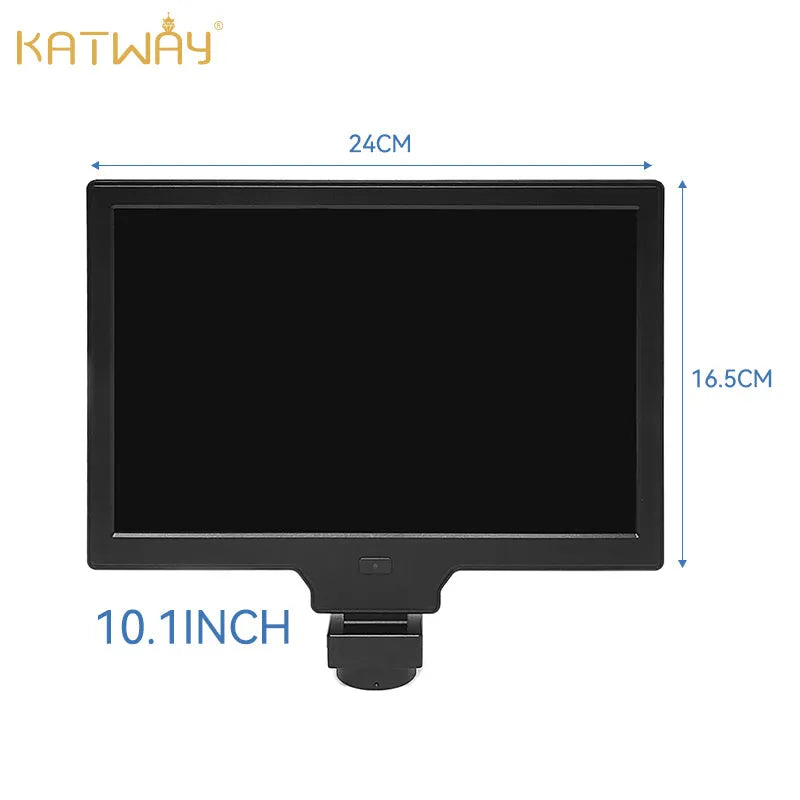

Exterior Dimensions:241.6*165.20*8.8mm
Individual Machine Weight:0.7kg
Power:DC 12V
Film and record:Support
Freeze: Support
Quarter Screen: Support
Divison: Support
Black and White: Support
Mirror: Support
Flip: Support
Cross cursor:Support
Features / Benefits
High-definition display
10.1-inch, 1920x1080 resolution.
High-performance sensor
IMX307, high-quality imaging.
Smooth video recording
60FPS real-time frame rate.
Flexible storage
USB flash or UVC connected to PC.
Multiple exposure options
Automatic and manual exposure.
